Product Parameters

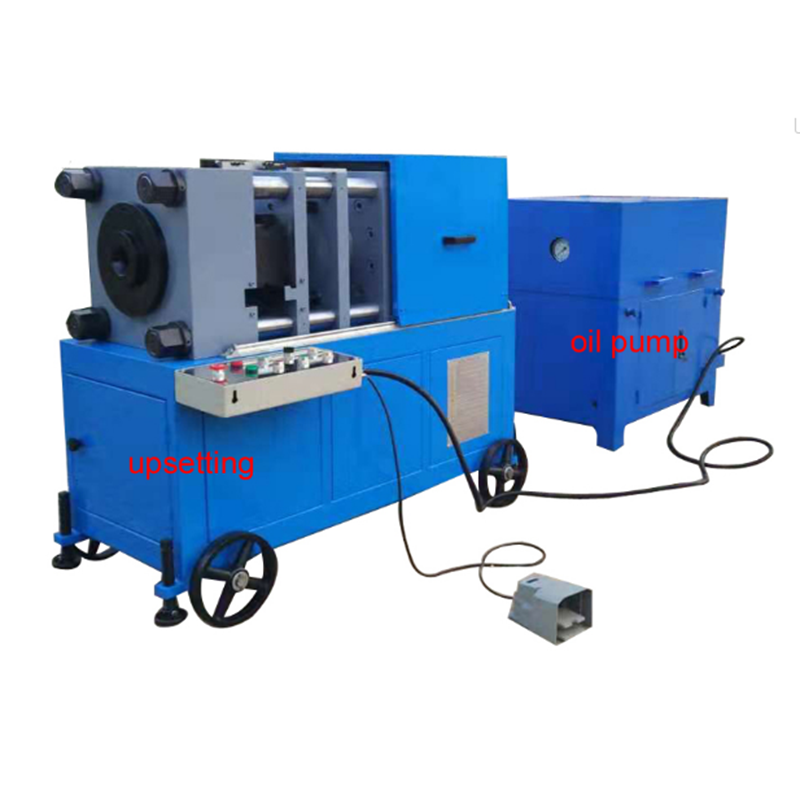

| Model | JD2500 | |
| Upsetting Machine | Suitable Rebar Size(mm) | 16-40 |
| Nom. Forge Force(KN) | 2500 | |
| Dimensions(mm) | 1380*670*1240 | |
| Weight(kg) | 1300 | |
| Hydraulic Oil Pump | Nom.oil Pressure(MPa) | 28 |
| Nom.Flow(L/min) | 10 | |
| Power of Motor(kw) | 7.5 | |
| Dimensions(mm) | 1400*900*1000 | |
| Weight(kg) | 2000 | |
Upsetting straight thread connection technology is to use a special upsetting machine to upset the threaded section to be processed at the end of the reinforcement in advance, so as to increase the diameter of the upsetting part to be larger than the diameter of the base metal. Then use the supporting special threading machine to thread the upsetting part, and then use the sleeve of the same specification to connect the threaded parts of the two processed steel bar heads with a wrench, that is, to complete the so-called steel bar butt joint. Strong straight thread connection technology such as upsetting has the advantages of stable performance, labor-saving and fast connection and high inspection qualification rate. At the same time, it can also completely solve the problem of non rotatable connection of reinforcement.
